Radial Drilling Machines
Our range of products include rtd 30 13mm mini radial (gearless model) 13 mm mini radial drilling machines, rtd-31 13mm mini radial (gearless model) 13 mm mini radial drilling machines, rtd 31 13mm mini radial (gearless model) 13 mm mini radial drilling machines, rtd-32 20 mm mini radial (geared model)20 mm mini radial drilling machines, rtd 33 20mm mini radial (geared model)20 mm mini radial drilling machines and rtd-33 20mm mini radial (geared model) 20 mm m

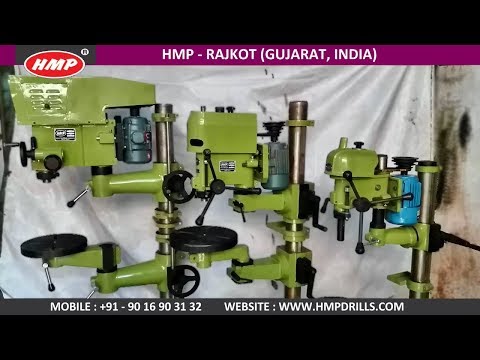

RTD 30 13MM MINI RADIAL (GEARLESS MODEL) 13 MM MINI RADIAL DRILLING MACHINES
Get Best Quote
Approx. Price: Rs 19,000 / PieceGet Latest Price Product Brochure
Product Details:
| Drilling Capacity | 40 mm |
| Drilling Diameter | 10 mm |
| Type of Drilling Machine | Radial |
| Spindle Travel | 150 mm |
| Spindle Speed | 500 TO 2800 |
| Table Size | 500×500 mm |
| Number Of Spindle Speeds | 8 |
| Base Plate Size | 470 X 320 MM |
| Number of Spindle Speed | FOUR SPEED |
| Spindle Taper | MT3 |
RTD-30 Mini Radial Drilling Machine
Specifications:
- Drilling Capacity: 16 mm
- Gear Type: Gearless
- Spindle Speed: Four-speed (500 to 2800 RPM)
- Spindle Nose: MT-2
- Spindle Centre to Column: 380 mm (15”)
- Spindle Travel: 75 mm (3”)
- Max Distance Spindle to Base: As per order
- Distance Center to Column: As per order
- Working Surface of Base: 320 x 320 mm
- Working Surface of Table: Not Applicable
- Column Diameter: 74 mm
- Machine Base Dimensions: 470 x 320 mm
- Motor: 0.5 HP / 1440 RPM
- V-Belt Size: FHP-2340
Request
Callback
Callback
Yes! I am interested
RTD-31 13MM MINI RADIAL (GEARLESS MODEL) 13 MM MINI RADIAL DRILLING MACHINES
Get Best Quote
Approx. Price: Rs 22,500 / PieceGet Latest Price Product Brochure
Product Details:
| Drilling Capacity | 40 mm |
| Drilling Diameter | 10 mm |
| Type of Drilling Machine | Pillar |
| Spindle Travel | 150 mm |
| Spindle Speed | 500 TO 2800 |
| Arm Length | 900 mm |
| Table Size | 500×500 mm |
| Number Of Spindle Speeds | 8 |
| Base Plate Size | 470 X 320 MM |
| Number of Spindle Speed | FOUR SPEED |
- Model: RTD-31
- Drilling Capacity: 16 mm
- Gear Type: Gearless
- Spindle Speed: Four speeds ranging from 500 to 2800 RPM
- Spindle Nose: MT-2 (Morse Taper 2)
- Spindle Centre to Column: 380 mm (15 inches)
- Spindle Travel: 75 mm (3 inches)
- Maximum Distance Spindle to Base: As per order
- Distance Center to Column: As per order
- Working Surface of Base: 320 x 320 mm
- Working Surface of Table: 280 mm round
- Column Diameter: 74 mm
- Machine Base: 470 x 320 mm
- Motor: 0.5 HP / 1440 RPM
- V-Belt Size: FHP-2340
The RTD-31 is designed to be versatile and compact, suitable for small to medium drilling tasks with precise control over spindle speeds and settings. If you need any more details or have specific questions about the machine, feel free to ask!
Request
Callback
Callback
Yes! I am interested
RTD 31 13MM MINI RADIAL (GEARLESS MODEL) 13 MM MINI RADIAL DRILLING MACHINES
Get Best Quote
Approx. Price: Rs 22,500 / PieceGet Latest Price Product Brochure
Product Details:
| Type of Drilling Machine | Radial |
| Spindle Travel | 150 mm |
| Spindle Speed | 500 TO 2800 |
| Arm Length | 900 mm |
| Table Size | 500×500 mm |
| Number Of Spindle Speeds | 8 |
| Base Plate Size | 470 X 320 MM |
| Number of Spindle Speed | FOUR SPEED |
| Spindle Taper | MT3 |
| Machine Type | Manual |
13 MM (1/2”) | Mini Radial Drilling Machine
Model: RTD-31
Specifications:- Drilling Capacity: 16 mm
- Gear Type: Gearless
- Spindle Speed: Four speeds
- Speed Range: 500 to 2800 RPM
- Spindle Nose: MT-2
- Spindle Centre to Column: 380 mm (15”)
- Spindle Travel: 75 mm (3”)
- Max Distance Spindle to Base: As per order
- Distance Center to Column: As per order
- Working Surface of Base: 320 x 320 mm
- Working Surface of Table: 280 mm (Round)
- Column Diameter: 74 mm
- Machine Base: 470 x 320 mm
- Motor: 0.5 HP / 1440 RPM
- V-Belt Size: FHP-2340
Request
Callback
Callback
Yes! I am interested
RTD-32 20 MM MINI RADIAL (GEARED MODEL)20 MM MINI RADIAL DRILLING MACHINES
Get Best Quote
Approx. Price: Rs 24,800 / PieceGet Latest Price Product Brochure
Product Details:
| Type of Drilling Machine | Radial |
| Spindle Travel | 150 mm |
| Spindle Speed | 90 TO 2800 |
| Arm Length | 900 mm |
| Table Size | 500×500 mm |
| Number Of Spindle Speeds | 8 |
| Base Plate Size | 470 X 320 MM |
| Number of Spindle Speed | EIGHT SPEED |
| Country of Origin | Made in India |
| Drilling Capacity | 25 mm |
RTD-32 Mini Radial Drilling Machine
- Drilling Capacity: 20 mm (3/4”)
- Gear Type: Geared
- Spindle Speed: Eight speeds
- Speed Range: 90 to 2800 RPM
- Spindle Nose: MT-2 (Morse Taper No. 2)
- Spindle Center to Column: 450 mm (18”)
- Spindle Travel: 100 mm (4”)
- Max Distance Spindle to Base: As per order
- Distance Center to Column: As per order
- Working Surface of Base: 320 x 320 mm
- Working Surface of Table: Not applicable (NA)
- Column Diameter: 74 mm
- Machine Base: 470 x 320 mm
- Motor: 1 HP / 1440 RPM
- V-Belt Size: A-39
- Radial Drilling Capability: Allows for versatile positioning and drilling in various angles and positions.
- Variable Speeds: Eight speeds provide flexibility for different materials and drilling requirements.
- Compact Size: Suitable for small to medium-sized drilling tasks, making it ideal for workshop use.
- Distance Specifications: Max distance spindle to base and distance center to column are customizable upon order, which means you can adapt the machine to specific needs.
- No Table Surface: This model does not include a table surface, so consider how you'll support and position your workpieces.
If you need more specific details or additional configurations, those might be customized or specified based on your particular needs or the supplier's options.
Request
Callback
Callback
Yes! I am interested
RTD 33 20MM MINI RADIAL (GEARED MODEL)20 MM MINI RADIAL DRILLING MACHINES
Get Best Quote
Approx. Price: Rs 28,500 / PieceGet Latest Price Product Brochure
Product Details:
| Drilling Diameter | 20 mm |
| Type of Drilling Machine | Radial |
| Base Plate Size | 470 X 320 MM |
| Spindle Speed | 90 TO 2800 |
| Number of Spindle Speed | EIGHT SPEED |
| Country of Origin | Made in India |
RTD-33 Mini Radial Drilling Machine
Specifications:
- Model: RTD-33
- Drilling Capacity: 20 mm (3/4”)
- Gear Type: Geared
- Spindle Speed: Eight speeds
- Speed Range: 90 to 2800 RPM
- Spindle Nose: MT-2 (Morse Taper)
- Spindle Centre to Column: 450 mm (18”)
- Spindle Travel: 100 mm (4”)
- Max Distance Spindle to Base: As per order
- Distance Center to Column: As per order
- Working Surface of Base: 320 x 320 mm
- Working Surface of Table: 280 mm (round)
- Column Diameter: 74 mm
- Machine Base: 470 x 320 mm
- Motor: 1 HP / 1440 RPM
- V-Belt Size: A-39
Request
Callback
Callback
Yes! I am interested
RTD-33 20MM MINI RADIAL (GEARED MODEL) 20 MM MINI RADIAL DRILLING MACHINES
Get Best Quote
Approx. Price: Rs 28,500 / PieceGet Latest Price Product Brochure
Product Details:
| Drilling Diameter | 20 mm |
| Type of Drilling Machine | Radial |
| Base Plate Size | 470 X 320 MM |
| Spindle Speed | 90 TO 2800 |
| Number of Spindle Speed | EIGHT SPEED |
| Country of Origin | Made in India |
RTD-33 Mini Radial Drilling Machine
- Drilling Capacity: 20 mm (3/4”)
- Gear Type: Geared
- Spindle Speed: Eight speeds
- Speed Range: 90 to 2800 RPM
- Spindle Nose: MT-2 (Morse Taper 2)
- Spindle Centre to Column: 450 mm (18”)
- Spindle Travel: 100 mm (4”)
- Maximum Distance Spindle to Base: Customizable (as per order)
- Distance Center to Column: Customizable (as per order)
- Working Surface of Base: 320 x 320 mm
- Working Surface of Table: 280 mm round
- Column Diameter: 74 mm
- Machine Base: 470 x 320 mm
- Motor: 1 HP / 1440 RPM
- V-Belt Size: A-39
This machine is designed for precise drilling operations with a range of adjustable speeds and customizable features to suit various machining needs. If you have any specific questions or need further details, feel free to ask!
Request
Callback
Callback
Yes! I am interested
RTD 34 25MM MINI RADIAL (GEARED MODEL)25 MM MINI RADIAL DRILLING MACHINES
Get Best Quote
Approx. Price: Rs 43,000 / PieceGet Latest Price Product Brochure
Product Details:
| Drilling Capacity | 40 mm |
| Drilling Diameter | 25 mm |
| Type of Drilling Machine | Radial |
| Spindle Travel | 150 mm |
| Spindle Speed | 120 TO 2800 |
| Arm Length | 900 mm |
| Table Size | 500×500 mm |
| Number Of Spindle Speeds | 8 |
| Base Plate Size | 560 X 400 MM |
| Number of Spindle Speed | EIGHT SPEED |
RTD-34 Mini Radial Drilling Machine Specifications
- Model: RTD-34
- Drilling Capacity: 25 mm (1 inch)
- Gear Type: Geared
- Spindle Speed: Eight speeds (120 to 2800 RPM)
- Spindle Nose: MT-3
- Spindle Centre to Column: 450 mm (18 inches)
- Spindle Travel: 150 mm (6 inches)
- Maximum Distance Spindle to Base: Customizable per order
- Distance Center to Column: Customizable per order
- Working Surface of Base: 360 x 400 mm
- Working Surface of Table: Not applicable
- Column Diameter: 87 mm
- Machine Base Dimensions: 560 x 400 mm
- Motor: 1.5 HP / 1440 RPM
- V-Belt Size: B-52
Request
Callback
Callback
Yes! I am interested
RTD 35 40 MM MINI RADIAL (GEARED MODEL) 40 MM MINI RADIAL DRILLING MACHINES
Get Best Quote
Approx. Price: Rs 62,300 / PieceGet Latest Price Product Brochure
Product Details:
| Type of Drilling Machine | Radial |
| Spindle Travel | 150 mm |
| Spindle Speed | 120 TO 2800 |
| Arm Length | 900 mm |
| Table Size | 500×500 mm |
| Number Of Spindle Speeds | 8 |
| Base Plate Size | 645 X 420 MM |
| Number of Spindle Speed | EIGHT SPEED |
| Spindle Taper | MT3 |
| Machine Type | Manual |
40 MM (1.5”) Mini Radial Drilling Machine
Model: RTD-35
Specifications:- Drilling Capacity: 40 MM
- Gear Type: Geared
- Spindle Speed: Eight speeds
- Speed Range: 120 to 2800 RPM
- Spindle Nose: MT-4
- Spindle Centre to Column: 550 MM (22”)
- Spindle Travel: 250 MM (10”)
- Max Distance Spindle to Base: As per order
- Distance Center to Column: As per order
- Working Surface of Base: 420 x 420 MM
- Working Surface of Table: 330 x 330 MM
- Column Diameter: 100 MM
- Machine Base: 645 x 420 MM
- Motor: 1.5 HP / 1440 RPM
- V-Belt Size: B-60
Request
Callback
Callback
Yes! I am interested
RTD-35 40 MM MINI RADIAL(GEARED MODEL) 40 MM MINI RADIAL DRILLING MACHINES
Get Best Quote
Approx. Price: Rs 62,300 / PieceGet Latest Price Product Brochure
Product Details:
| Drilling Diameter | 32 mm |
| Drilling Capacity | 40 mm |
| Spindle Travel | 150 mm |
| Spindle Speed | 120 TO 2800 |
| Arm Length | 900 mm |
| Table Size | 500×500 mm |
| Number Of Spindle Speeds | 8 |
| Base Plate Size | 645 X 420 MM |
| Number of Spindle Speed | EIGHT SPEED |
| Spindle Taper | MT3 |
RTD-35 Mini Radial Drilling Machine
- Drilling Capacity: 40 mm (1.5 inches)
- Gear Type: Geared
- Spindle Speed: Eight-speed options
- Speed Range: 120 to 2800 RPM
- Spindle Nose: MT-4 (Morse Taper #4)
- Spindle Center to Column: 550 mm (22 inches)
- Spindle Travel: 250 mm (10 inches)
- Maximum Distance Spindle to Base: Customizable upon order
- Distance Center to Column: Customizable upon order
- Working Surface of Base: 420 x 420 mm
- Working Surface of Table: 330 x 330 mm
- Column Diameter: 100 mm
- Machine Base Dimensions: 645 x 420 mm
- Motor: 1.5 HP, 1440 RPM
- V-Belt Size: B-60
Request
Callback
Callback
Yes! I am interested
RTD-34 25MM MINI RADIAL (GEARED MODEL) 25 MM MINI RADIAL DRILLING MACHINES
Get Best Quote
Approx. Price: Rs 43,500 / PieceGet Latest Price Product Brochure
Product Details:
| Drilling Diameter | 25 mm |
| Type of Drilling Machine | Radial |
| Base Plate Size | 560 X 400 MM |
| Spindle Speed | 120 TO 2800 |
| Number of Spindle Speed | EIGHT SPEED |
| Country of Origin | Made in India |
RTD-34 Mini Radial Drilling Machine
- Drilling Capacity: 25 mm (1 inch)
- Gear Type: Geared
- Spindle Speed: Eight speeds ranging from 120 to 2800 RPM
- Spindle Nose: MT-3 (Morse Taper 3)
- Spindle Centre to Column: 450 mm (18 inches)
- Spindle Travel: 150 mm (6 inches)
- Maximum Distance Spindle to Base: Customizable as per order
- Distance Center to Column: Customizable as per order
- Working Surface of Base: 360 x 400 mm
- Column Diameter: 87 mm
- Machine Base Size: 560 x 400 mm
- Motor: 1.5 HP / 1440 RPM
- V-Belt Size: B-52
Request
Callback
Callback
Yes! I am interested
Reach Us
Rajlaxmi Tools (Founder)
Rajlaxmi Machine Tools
Plot No.11, Survey No. 212, Rajlaxmi Estate, Atlas Industrial Area, Near Maldhari Railway Crossing
Rajkot - 360004, Gujarat, India
Get DirectionsPlot No.11, Survey No. 212, Rajlaxmi Estate, Atlas Industrial Area, Near Maldhari Railway Crossing
Rajkot - 360004, Gujarat, India
