Drilling Milling Tapping Machines

Product Details:

DRILLING + MILLING + TAPPING MACHINE (3-in-1)

Model: RTD-56 (Similar to RTD-15)

Specifications:

• Drilling Capacity: 25 mm
• Spindle Speed: 8 speeds
• Speed Range: 87 to 3600 RPM
• Spindle Nose: MT-3
• Spindle Centre to Column: 200 mm
• Spindle Travel: 150 mm
• Max Distance Spindle to Table: 650 mm
• Max Distance Spindle to Base: 940 mm
• Base Working Surface: 320 x 320 mm
• Table Working Surface: 280 x 280 mm
• Column Diameter: 74 mm
• Machine Base Dimensions: 470 x 320 mm
• Motor: 1.5 HP / 1440 RPM
• V-Belt Size: A-44
• Weight (Approx.): 150 kg

Milling Slide Details:

• Cross Travel (Left – Right): 250 mm
• Longitudinal Travel: 100 mm
• Table Size: 140 x 380 mm

Notes:

• The RTD-56 is designed for light-duty applications.
• Ideal for a variety of machining tasks in workshops and fabrication shops.

Product Details:

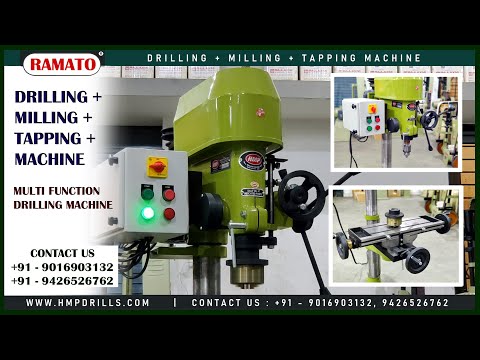

RTD-57 Three-in-One Drilling, Milling, and Tapping MachineSpecifications

• Model: RTD-57 (Similar to RTD-16)
• Drilling Capacity: 25 mm
• Spindle Speed: 8 speeds (87 to 3600 RPM)
• Spindle Nose: MT-3
• Spindle Center to Column: 200 mm
• Spindle Travel: 150 mm
• Max Distance Spindle to Table: 650 mm
• Max Distance Spindle to Base: 940 mm
• Base Working Surface: 320 x 320 mm
• Table Working Surface: 310 mm (round)
• Column Diameter: 74 mm
• Machine Base Dimensions: 470 x 320 mm
• Motor: 1.5 HP, 1440 RPM
• V-Belt Size: A-44
• Weight: Approx. 150 kg

Milling Slide Details

• Cross Travel (Left-Right): 250 mm
• Longitudinal Travel: 100 mm
• Table Size: 140 x 380 mm

Features

• Versatile Operation: Capable of drilling, milling, and tapping in one compact unit.
• Robust Design: Ideal for light-duty applications with reliable performance.
• Adjustable Speeds: Multiple spindle speeds for various materials and operations.
• Compact Footprint: Suitable for workshops with limited space.

Product Details:

Three-in-One Drilling, Milling, and Tapping Machine

Model: RTD-58 (Similar to RTD-17)

Specifications:

• Drilling Capacity: 25 mm
• Spindle Speed: 8 speeds
• Speed Range: 87 to 3600 RPM
• Spindle Nose: MT-3
• Spindle Centre to Column: 250 mm
• Spindle Travel: 150 mm
• Max Distance Spindle to Table: 930 mm
• Max Distance Spindle to Base: 1200 mm
• Working Surface of Base: 360 x 400 mm
• Working Surface of Table: 395 mm (Round)
• Column Diameter: 74 mm
• Machine Base Dimensions: 550 x 380 mm
• Motor: 1.5 HP / 1440 RPM
• V-Belt Size: B-52
• Weight of Machine (Approx.): 195 kg

Milling Slide Details:

• Cross Travel (Left-Right): 300 mm
• Longitudinal Travel: 150 mm
• Table Size: 160 x 520 mm

Features:

• Heavy Duty Design: Built for robust applications.
• Versatile Functionality: Ideal for drilling, milling, and tapping in one machine.
• Precision Engineering: Suitable for various machining tasks with adjustable speeds.

Product Details:

RTD-59 Drilling, Milling, and Tapping Machine

Model: RTD-59 (Similar to RTD-18)

Specifications:

• Drilling Capacity: 25 mm
• Spindle Speed: 8 Speeds (87 to 3600 RPM)
• Spindle Nose: MT-3
• Spindle Centre to Column: 250 mm
• Spindle Travel: 150 mm
• Max Distance Spindle to Table: 930 mm
• Max Distance Spindle to Base: 1200 mm
• Base Working Surface: 360 x 400 mm
• Table Working Surface: 320 x 320 mm
• Column Diameter: 74 mm
• Machine Base Size: 550 x 380 mm
• Motor: 1.5 HP / 1440 RPM
• V-Belt Size: B-52
• Weight: Approx. 200 kg

Milling Slide Details:

• Cross Travel (Left-Right): 300 mm
• Longitudinal Travel: 150 mm
• Table Size: 160 x 520 mm

Features:

• Heavy Duty Design: Built for durability and precision.
• Versatile Operation: Capable of drilling, milling, and tapping.
• Variable Speed Control: Offers a wide range of spindle speeds for different applications.

Product Details:

Machine Specifications:

• Model: RTD-59 (similar to RTD-18)
• Function: Drilling, Milling, and Tapping
• Drilling Capacity: 25 mm
• Spindle Speed: Eight speeds
• Speed Range: 87 to 3600 RPM
• Spindle Nose: MT-3
• Spindle Centre to Column: 250 mm
• Spindle Travel: 150 mm
• Max Distance Spindle to Table: 930 mm
• Max Distance Spindle to Base: 1200 mm
• Working Surface of Base: 360 x 400 mm
• Working Surface of Table: 320 x 320 mm
• Column Diameter: 74 mm
• Machine Base Size: 550 x 380 mm
• Motor: 1.5 HP / 1440 RPM
• V-Belt Size: B-52
• Weight of Machine (Approx.): 200 kg

Milling Slide Details:

• Cross Travel (Left-Right): 300 mm
• Longitudinal Travel: 150 mm
• Table Size: 160 x 520 mm

Model Feature:

• RTD-59: Heavy Duty (Square)

Product Details:

RTD-60 Three-in-One Drilling, Milling, and Tapping Machine

Model: RTD-60 (Similar to RTD-22)

Specifications:

• Drilling Capacity: 40 mm
• Spindle Speed: 8 speeds (120 to 2800 RPM)
• Spindle Nose: MT-4
• Spindle Centre to Column: 250 mm
• Spindle Travel: 155 mm
• Max Distance Spindle to Table: 830 mm
• Max Distance Spindle to Base: 1050 mm
• Base Working Surface: 360 x 400 mm
• Table Working Surface: 330 x 330 mm
• Column Diameter: 87 mm
• Machine Base Dimensions: 560 x 400 mm
• Motor: 1.5 HP, 1440 RPM
• V-Belt Size: B-52
• Approximate Weight: 280 kg

Milling Slide Details:

• Cross Travel (Left-Right): 380 mm
• Longitudinal Travel: 200 mm
• Table Size: 200 x 600 mm

Product Details:

Machine Specifications

• Model: RTD-60 (Similar to RTD-22)
• Drilling Capacity: 40 mm
• Spindle Speed: Eight speeds ranging from 120 to 2800 RPM
• Spindle Nose: MT-4 (Morse Taper 4)
• Spindle Centre to Column: 250 mm
• Spindle Travel: 155 mm
• Maximum Distance Spindle to Table: 830 mm
• Maximum Distance Spindle to Base: 1050 mm
• Working Surface of Base: 360 x 400 mm
• Working Surface of Table: 330 x 330 mm
• Column Diameter: 87 mm
• Machine Base Size: 560 x 400 mm
• Motor: 1.5 HP / 1440 RPM
• V-Belt Size: B-52
• Weight: Approximately 280 kg

Milling Slide Details

• Cross Travel (Left – Right): 380 mm
• Longitudinal Travel: 200 mm
• Table Size: 200 x 600 mm

Product Details:

DRILLING + MILLING + TAPPING MACHINE

Model: RTD-60H (Similar to RTD-22H)

Specifications:

• Drilling Capacity: 40 mm
• Spindle Speed: Eight-speed options
• Speed Range: 120 to 2800 RPM
• Spindle Nose: MT-4
• Spindle Center to Column: 250 mm
• Spindle Travel: 250 mm
• Max Distance Spindle to Table: 830 mm
• Max Distance Spindle to Base: 1050 mm
• Working Surface of Base: 360 x 400 mm
• Working Surface of Table: 330 x 330 mm
• Column Diameter: 87 mm
• Machine Base: 560 x 400 mm
• Motor: 1.5 HP / 1440 RPM
• V-Belt Size: B-52
• Weight of Machine (Approx.): 300 kg

Milling Slide Details:

• Cross Travel (Left-Right): 380 mm
• Longitudinal Travel: 200 mm
• Table Size: 200 x 600 mm

Features:

• Heavy-Duty Construction: Designed for durability and stability during operation.
• Versatile Functionality: Capable of drilling, milling, and tapping tasks.
• Precision Engineering: Ensures accuracy in various machining applications.

Product Details:

the RTD-60H (RTD-22H similar), is a three-in-one drilling, milling, and tapping machine. Here’s a breakdown of the key specifications and capabilities:

General Machine Specifications:

• Model: RTD-60H (Similar to RTD-22H)
• Drilling Capacity: 40 mm
• Spindle Speed: 8-speed
• Speed Range: 120 to 2800 RPM
• Spindle Nose: MT-4 (Morse Taper 4)
• Spindle Centre to Column: 250 mm
• Spindle Travel: 250 mm
• Max Distance from Spindle to Table: 830 mm
• Max Distance from Spindle to Base: 1050 mm
• Base Working Surface: 360 x 400 mm
• Table Working Surface: 330 x 330 mm
• Column Diameter: 87 mm
• Machine Base Size: 560 x 400 mm
• Motor: 1.5 HP @ 1440 RPM
• V-belt Size: B-52
• Approximate Weight: 300 kg

Milling Slide Details:

• Cross Travel (Left-Right): 380 mm
• Longitudinal Travel: 200 mm
• Table Size: 200 x 600 mm

Additional Feature:

• RTD 60H is identified as Heavy Duty (Square), meaning it's likely built for rigorous industrial applications with a square-shaped design for added stability and precision.

Product Details:

Three-in-One Drilling, Milling, and Tapping Machine: Model RTD-61Specifications

• Drilling Capacity: 40 mm
• Spindle Speed: 8 speeds, ranging from 87 to 1850 RPM
• Spindle Nose: MT-4
• Spindle Centre to Column: 250 mm
• Spindle Travel: 250 mm
• Max Distance Spindle to Table: 830 mm
• Max Distance Spindle to Base: 1050 mm
• Working Surface of Base: 360 x 400 mm
• Working Surface of Table: 395 mm (round)
• Column Diameter: 87 mm
• Machine Base Dimensions: 560 x 400 mm
• Motor: 1.5 HP / 1440 RPM
• V-Belt Size: B-52
• Weight of Machine: Approximately 310 kg

Milling Slide Details

• Cross Travel (Left-Right): 380 mm
• Longitudinal Travel: 200 mm
• Table Size: 200 x 600 mm

Features

• Versatile Functionality: Combines drilling, milling, and tapping in one machine, ideal for various machining tasks.
• Heavy-Duty Construction: Designed for durability and stability during operation.
• User-Friendly Design: Easy to operate with precise controls for efficient machining.

Product Details:

The DRILLING + MILLING + TAPPING MACHINE (RTD-61) is a versatile 3-in-1 industrial tool combining drilling, milling, and tapping functionalities. Below is a detailed breakdown of its specifications:

Key Features & Specifications:Drilling Specifications:

• Drilling Capacity: 40 mm
• Spindle Speed: 8-speed adjustable
• Speed Range: 87 to 1850 RPM
• Spindle Nose: MT-4 (Morse Taper-4)
• Spindle Centre to Column: 250 mm
• Spindle Travel: 250 mm
• Max Distance Spindle to Table: 830 mm
• Max Distance Spindle to Base: 1050 mm

Table and Base:

• Table Working Surface: 395 mm (round)
• Base Working Surface: 360 x 400 mm
• Column Diameter: 87 mm
• Machine Base Size: 560 x 400 mm

Motor:

• Motor Power: 1.5 HP
• Motor RPM: 1440 RPM

V-Belt:

• V-Belt Size: B-52

Weight:

• Machine Weight: Approx. 310 kg

Milling Slide Details:

• Cross Travel (Left-Right): 380 mm
• Longitudinal Travel: 200 mm
• Table Size: 200 x 600 mm

This model, RTD-61, is a heavy-duty round-based version with improved capacity for industrial applications involving drilling, milling, and tapping operations. Its robust construction and versatile movement make it suitable for a range of machining tasks.

Product Details:

Three-in-One Drilling, Milling, and Tapping Machine

Model: RTD-62 (Similar to RTD-23 H)

Specifications:

• Drilling Capacity: 40 mm
• Spindle Speed: 8 speeds (87 to 1850 RPM)
• Spindle Nose: MT-4
• Spindle Centre to Column: 375 mm
• Spindle Travel: 310 mm
• Max Distance Spindle to Table: 850 mm
• Max Distance Spindle to Base: 1050 mm
• Working Surface of Base: 420 x 420 mm
• Working Surface of Table: 495 mm (round)
• Column Diameter: 100 mm
• Machine Base Size: 645 x 420 mm
• Motor: 1.5 HP / 1440 RPM
• V-Belt Size: B-65
• Weight: Approx. 460 kg

Milling Slide Details:

• Cross Travel (Left – Right): 380 mm
• Longitudinal Travel: 200 mm
• Table Size: 200 x 600 mm

Features:

• Heavy-Duty Design: Built for durability and stability during operation.
• Versatile Functionality: Capable of drilling, milling, and tapping, making it suitable for various

Product Details:

Machine Model: RTD-62 (Similar to RTD-23 H)

Drilling Capacity: 40 mm
Spindle Speed: 8 speeds, ranging from 87 to 1850 RPM
Spindle Nose: MT-4
Spindle Centre to Column: 375 mm
Spindle Travel: 310 mm
Max Distance Spindle to Table: 850 mm
Max Distance Spindle to Base: 1050 mm
Working Surface of Base: 420 x 420 mm
Working Surface of Table: 495 mm round
Column Diameter: 100 mm
Machine Base Size: 645 x 420 mm
Motor: 1.5 HP / 1440 RPM
V-Belt Size: B-65
Weight: Approx. 460 kg

Milling Slide Details

Cross Travel (Left-Right): 380 mm
Longitudinal Travel: 200 mm
Table Size: 200 x 600 mm

Product Details:

DRILLING + MILLING + TAPPING MACHINE

Model: RTD – 64 (Similar to RTD – 23 D)

Specifications:

• Drilling Capacity: 40 mm
• Spindle Speed: 8 Speed Settings
• Speed Range: 87 to 1850 RPM
• Spindle Nose: MT-4
• Spindle Center to Column: 350 mm
• Spindle Travel: 250 mm
• Max Distance Spindle to Table: 830 mm
• Max Distance Spindle to Base: 1050 mm
• Working Surface of Base: 420 x 420 mm
• Working Surface of Table: 395 mm (Round)
• Column Diameter: 87 mm
• Machine Base Dimensions: 645 x 420 mm
• Motor Power: 1.5 HP / 1440 RPM
• V-Belt Size: B-60
• Weight of Machine: Approx. 330 kg

Milling Slide Details:

• Cross Travel (Left-Right): 380 mm
• Longitudinal Travel: 200 mm
• Table Size: 200 x 600 mm

Product Details:

Rajlaxmi Machine Tools Offers HMP, Ramato and Roent Make All Type of Drill Machine, Drilling Machine, Pillar Drill Machine, Pillar Drilling Machine, Mini Radial Drilling Machine, Pillar Cum Radial Drilling Machine, Radial Drilling Machine, Drilling Cum Milling Machine, Drilling Cum Tapping Machine, Automatic Threading Machine, Drilling + Milling + Tapping Machine, Automatic Drilling Machine, CNC Drilling Machine, Tapping Machine, Electric Motor, Concrete Vibratory Motor, Unbalanced Vibratory Motor, Electro Magnetic Brake Motor, Tool Post Motor, ISI Electric Motor, Motor Pump, Pump Motor, Single Phase Electric Motor, Three Phase Induction Motor, Bench Grinder, Pipe Type Bench Grinder, Bench Grinding Machine, Flexible Shaft Grinder, Universal Tool Grinder, Extra Heavy Duty Pedestal Grinder, Swing Frame Grinder, Jhulla Grinder, Flap Bruch Grinder, Bandsaw Grinder, Long Center Heavy Duty Pedestal Stone Grinding Machine, Bench Polisher, Buff Polisher, Buffing Machine, Tyre Retreading Machine, Automatic Grinding Machine, Automatic Polishing Machine, Automatic Deburring Machine, Automatic Buffing Machine, Flat Surface Finishing Machine, Single Two Three And Four Head Hinges Polishing Convertor Based Automatic Belt Grinder, Belt Sander, Belt Disc Sander, Glass Polisher, Abrasive Belt Grinder, Belt Grinding Machine, Single Side and Double Side Heavy Duty Abrasive Belt Grinding Machines, lathe Mounted Tool Post Belt Grinder, Lancer machine, Coolant Pump, Air Pump, Rotary Gear Pump, Motor Coil Winding Machine, Automatic Motor Coil Winding Machine, Industrial Motorised Cutoff Chop saw Machine, Hand Shearing Machine, Manual Pipe Bender, Hydraulic Pipe Bending Machine, Section and Motorised Three Roller Pipe Bending Machine, Single Stage Air Compressor, Two Stage Air Compressor, Screw Air Compressor, Oil Free Air Compressor, Dental Air Compressor, Pressure Pump, Car Washer, Three Piston Pump, Plunger Pump, Air Blowers, MS Fabricated Centrifugal Air Blower, Ring Blower, Suction Air Blower, Pressure Air Blower, Biofloc Ring Blowers, Welding Machine, Stud Type Transformer Based Arc Welding Machine, Moving Core Type Regulator Based Arc Welding Machine, CO2 Mag Welding Machine, Mig Welding Machine, Stainless Steel Argon Gas Welding Machine, Tig Welding Machine, Spot Welding Machine, Butt Welding Machine, Resistance Projection Welding Machine, Seam Welding Machine, Laser Welding Machine, Automatic Machine, CNC Machine, AC Drive, Gear Drive, Servo Drive, Servo Motor, Gearbox, Automation Products Manufacturer, Dealer And Exporter From Rajkot, Gujarat, Bharat (INDIA).

Product Details:

Machine Overview:

• Model: RTD-56 (similar to RTD-15)
• Type: Drilling, Milling, Tapping Machine (Three-in-One)

Drilling Specifications:

• Drilling Capacity: 25 mm
• Spindle Speed: Eight speeds
• Speed Range: 87 to 3600 RPM
• Spindle Nose: MT-3 (Morse Taper 3)
• Spindle Centre to Column: 200 mm
• Spindle Travel: 150 mm
• Maximum Distance Spindle to Table: 650 mm
• Maximum Distance Spindle to Base: 940 mm

Table and Base Dimensions:

• Working Surface of Base: 320 x 320 mm
• Working Surface of Table: 280 x 280 mm
• Column Diameter: 74 mm
• Machine Base: 470 x 320 mm

Motor and Drive:

• Motor: 1.5 HP / 1440 RPM
• V-Belt Size: A-44

Milling Slide Details:

• Cross Travel (Left-Right): 250 mm
• Longitudinal Travel: 100 mm
• Table Size: 140 x 380 mm

Weight:

• Approximate Weight of Machine: 150 kg

Additional Notes:

• Type: Light Duty (Square)

Product Details:

DRILLING + MILLING + TAPPING MACHINE (3-in-1)

Model: RTD – 63 (Similar to RTD – 23 C)

Specifications:

• Drilling Capacity: 40 mm
• Spindle Speed: 8 Speed Options
• Speed Range: 120 to 2800 RPM
• Spindle Nose: MT-4
• Spindle Centre to Column: 350 mm
• Spindle Travel: 155 mm
• Max Distance Spindle to Table: 830 mm
• Max Distance Spindle to Base: 1050 mm
• Base Working Surface: 420 x 420 mm
• Table Working Surface: 330 x 330 mm
• Column Diameter: 87 mm
• Machine Base Dimensions: 645 x 420 mm
• Motor Power: 1.5 HP / 1440 RPM
• V-Belt Size: B-60
• Weight: Approx. 300 kg

Product Details:

The machine you described is a three-in-one drilling, milling, and tapping machine (Model HMP-61H, similar to HMP-23B). Here's a breakdown of its technical specifications:

General Machine Information:

• Machine Type: Three-in-one (Drilling, Milling, Tapping)
• Model: HMP-61H (similar to HMP-23B)
• Weight: 340 kg (approx.)

Drilling Specifications:

• Drilling Capacity: 40 mm
• Spindle Speed: 8 speeds
• Speed Range: 87 - 1850 RPM
• Spindle Nose: MT-4 (Morse Taper 4)
• Spindle Centre to Column: 300 mm
• Spindle Travel: 300 mm
• Maximum Distance Spindle to Table: 830 mm
• Maximum Distance Spindle to Base: 1050 mm

Table & Base:

• Working Surface of Base: 360 x 400 mm
• Working Surface of Table: 395 mm (Round)
• Machine Base Size: 560 x 400 mm

Milling Slide Details:

• Cross Travel (Left-Right): 380 mm
• Longitudinal Travel: 200 mm
• Table Size: 200 x 600 mm

Motor & Power:

• Motor Power: 1.5 HP
• Motor RPM: 1440 RPM
• V-Belt Size: B-52

Column:

• Column Diameter: 100 mm

This three-in-one machine is versatile and suitable for heavy-duty operations like drilling, milling, and tapping, ideal for precision engineering or metalworking applications.
