Drilling Cum Tapping Machines

Providing you the best range of rtd-38 (rtd-15) 25 mm light duty (square) drilling cum tapping automatic reverse drill, rtd-39 (rtd-16) 25mm tapping cum drilling machines (automatic reverse drilling machine), rtd-39 (rtd-16) 25mm light duty (round) drilling cum tapping machines (panel type), rtd-40 (rtd-17) 25mm regular duty (round) drilling cum tapping machines (auto reverse panel type), rtd-40 (rtd-17) 25mm regular duty (round) drilling cum tapping machines (panel type) and rtd-41 (rtd-18) 25mm (round) drilling cum tapping machines with automatic plc reverse panel with effective & timely delivery.

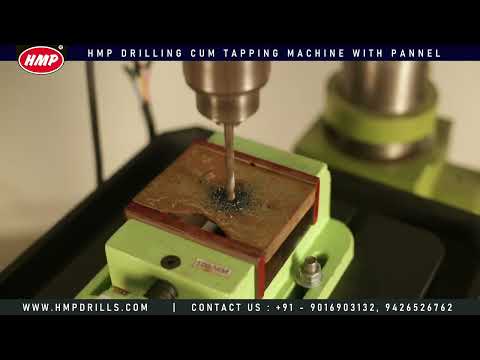

RTD-38 (RTD-15) 25 Mm Light Duty (Square) Drilling Cum Tapping Automatic Reverse Drill

RTD-38 (RTD-15) 25 Mm Light Duty (Square) Drilling Cum Tapping Automatic Reverse Drill
  • RTD-38 (RTD-15) 25 Mm Light Duty (Square) Drilling Cum Tapping Automatic Reverse Drill
  • RTD-38 (RTD-15) 25 Mm Light Duty (Square) Drilling Cum Tapping Automatic Reverse Drill
  • RTD-38 (RTD-15) 25 Mm Light Duty (Square) Drilling Cum Tapping Automatic Reverse Drill
  • RTD-38 (RTD-15) 25 Mm Light Duty (Square) Drilling Cum Tapping Automatic Reverse Drill
Get Best Quote
Approx. Price: Rs 33,000 / PieceGet Latest Price
Product Brochure

Product Details:

Hole Diameter20 mm
MaterialMild Steel
Drilling Capacity In Steel25
FunctionsDrilling, Tapping
Automation GradeSemi Automatic
LayoutVertical
Country of OriginMade in India

Drilling Cum Tapping Machine (Panel Type)

Model: RTD – 38 (Similar to RTD-15)

Specifications:
  • Drilling Capacity: 25 mm
  • Spindle Speed: 8 Speed Settings
  • Speed Range: 87 to 3600 RPM
  • Spindle Nose: MT-3
  • Spindle Centre to Column: 200 mm
  • Spindle Travel: 150 mm
  • Max Distance Spindle to Table: 650 mm
  • Max Distance Spindle to Base: 940 mm
  • Working Surface of Base: 320 x 320 mm
  • Working Surface of Table: 280 x 280 mm
  • Column Diameter: 74 mm
  • Machine Base: 470 x 320 mm
  • Motor: 1.5 HP / 1440 RPM
  • V-Belt Size: A-44
  • Weight of Machine (Approx.): 120 kg
  • Duty Type: Light Duty (Square)
Request
Callback
Yes! I am Interested

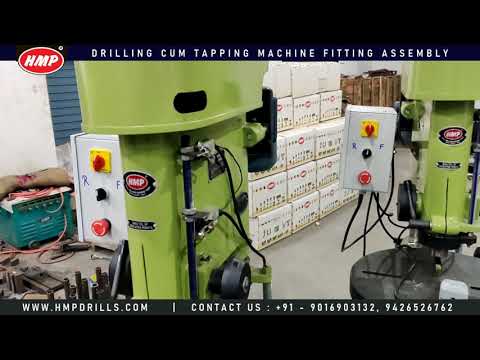

RTD-39 (RTD-16) 25mm Tapping Cum Drilling Machines (Automatic Reverse Drilling Machine)

RTD-39 (RTD-16) 25mm Tapping Cum Drilling Machines (Automatic Reverse Drilling Machine)
  • RTD-39 (RTD-16) 25mm Tapping Cum Drilling Machines (Automatic Reverse Drilling Machine)
  • RTD-39 (RTD-16) 25mm Tapping Cum Drilling Machines (Automatic Reverse Drilling Machine)
  • RTD-39 (RTD-16) 25mm Tapping Cum Drilling Machines (Automatic Reverse Drilling Machine)
  • RTD-39 (RTD-16) 25mm Tapping Cum Drilling Machines (Automatic Reverse Drilling Machine)
  • RTD-39 (RTD-16) 25mm Tapping Cum Drilling Machines (Automatic Reverse Drilling Machine)
Get Best Quote
Approx. Price: Rs 33,000 / PieceGet Latest Price
Product Brochure

Product Details:

FunctionsDRILLING CUM TAPPING MACHINES
Warranty1 YEAR
MaterialMild Steel
Hole Diameter25 mm
Usage/ApplicationDRILL + TAPPING
Max Speed87 TO 3600
Model Name/NumberRTD 39 - LIGHT DUTY (ROUND

RTD-39 Drilling Cum Tapping Machine Specifications
  • Model: RTD-39 (similar to RTD-16)
  • Drilling Capacity: 25 mm
  • Spindle Speed: Eight speeds
  • Speed Range: 87 to 3600 RPM
  • Spindle Nose: MT-3 (Morse Taper 3)
  • Spindle Centre to Column: 200 mm
  • Spindle Travel: 150 mm
  • Maximum Distance Spindle to Table: 650 mm
  • Maximum Distance Spindle to Base: 940 mm
  • Working Surface of Base: 320 x 320 mm
  • Working Surface of Table: 310 mm (Round)
  • Column Diameter: 74 mm
  • Machine Base: 470 x 320 mm
  • Motor: 1.5 HP, 1440 RPM
  • V-Belt Size: A-44
  • Weight of Machine (Approx.): 120 kg
  • Type: Light Duty (Round)
Key Points:
  • Versatility: The machine is capable of both drilling and tapping operations.
  • Spindle Speed Range: Offers a wide range of speeds, from low (87 RPM) for heavier cuts to high (3600 RPM) for finer, faster drilling.
  • Motor Power: The 1.5 HP motor is suitable for a variety of light-duty tasks.
  • Design: The round table and base dimensions make it versatile for various workpieces, though the machine is classified as light duty.
Request
Callback
Yes! I am Interested

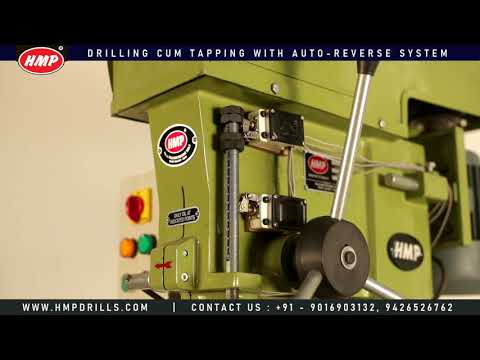

RTD-39 (RTD-16) 25mm Light Duty (Round) Drilling Cum Tapping Machines (Panel Type)

RTD-39 (RTD-16) 25mm Light Duty (Round) Drilling Cum Tapping Machines (Panel Type)
  • RTD-39 (RTD-16) 25mm Light Duty (Round) Drilling Cum Tapping Machines (Panel Type)
  • RTD-39 (RTD-16) 25mm Light Duty (Round) Drilling Cum Tapping Machines (Panel Type)
  • RTD-39 (RTD-16) 25mm Light Duty (Round) Drilling Cum Tapping Machines (Panel Type)
  • RTD-39 (RTD-16) 25mm Light Duty (Round) Drilling Cum Tapping Machines (Panel Type)
Get Best Quote
Approx. Price: Rs 33,000 / PieceGet Latest Price
Product Brochure

Product Details:

Hole Diameter20 mm
MaterialMild Steel
Drilling Capacity In Steel25
FunctionsTapping, Drilling
Automation GradeSemi Automatic
LayoutVertical

RTD-39 Drilling Cum Tapping Machine
  • Model: RTD-39 (similar to RTD-16)
  • Drilling Capacity: 25 mm
  • Spindle Speed: Eight speeds (87 to 3600 RPM)
  • Spindle Nose: MT-3
  • Spindle Centre to Column: 200 mm
  • Spindle Travel: 150 mm
  • Max Distance Spindle to Table: 650 mm
  • Max Distance Spindle to Base: 940 mm
  • Working Surface of Base: 320 x 320 mm
  • Working Surface of Table: 310 mm (round)
  • Column Diameter: 74 mm
  • Machine Base: 470 x 320 mm
  • Motor: 1.5 HP / 1440 RPM
  • V-Belt Size: A-44
  • Weight: Approx. 120 kg
  • Type: Light Duty (Round)
Request
Callback
Yes! I am Interested

RTD-40 (RTD-17) 25mm Regular Duty (Round) Drilling Cum Tapping Machines (Auto Reverse Panel Type)

RTD-40 (RTD-17) 25mm Regular Duty (Round) Drilling Cum Tapping Machines (Auto Reverse Panel Type)
  • RTD-40 (RTD-17) 25mm Regular Duty (Round) Drilling Cum Tapping Machines (Auto Reverse Panel Type)
  • RTD-40 (RTD-17) 25mm Regular Duty (Round) Drilling Cum Tapping Machines (Auto Reverse Panel Type)
  • RTD-40 (RTD-17) 25mm Regular Duty (Round) Drilling Cum Tapping Machines (Auto Reverse Panel Type)
  • RTD-40 (RTD-17) 25mm Regular Duty (Round) Drilling Cum Tapping Machines (Auto Reverse Panel Type)
  • RTD-40 (RTD-17) 25mm Regular Duty (Round) Drilling Cum Tapping Machines (Auto Reverse Panel Type)
  • RTD-40 (RTD-17) 25mm Regular Duty (Round) Drilling Cum Tapping Machines (Auto Reverse Panel Type)
Get Best Quote
Approx. Price: Rs 39,000 / PieceGet Latest Price
Product Brochure

Product Details:

Minimum Order Quantity1 Piece
Hole Diameter20 mm
Working Stroke(mm)100
Usage/ApplicationDRILLING + TAPPING
Max Speed87 TO 3600
Model Name/NumberRTD 40 - REGULAR DUTY (ROUND)
Country of OriginMade in India
SPINDLE SPEEDEIGHT SPEED
SPEED RANGE87 TO 3600
SPINDLE NOSEMT-3
SPINDLE CENTRE TO COLUMN250 MM

RTD-40 Machine Specifications
  • Drilling Capacity: 25 mm
  • Spindle Speed: Eight speeds
  • Speed Range: 87 to 3600 RPM
  • Spindle Nose: MT-3 (Morse Taper No. 3)
  • Spindle Center to Column: 250 mm
  • Spindle Travel: 150 mm
  • Maximum Distance Spindle to Table: 930 mm
  • Maximum Distance Spindle to Base: 1200 mm
  • Working Surface of Base: 360 x 400 mm
  • Working Surface of Table: 395 mm diameter (round)
  • Column Diameter: 74 mm
  • Machine Base Dimensions: 550 x 380 mm
  • Motor Power/RPM: 1.5 HP / 1440 RPM
  • V-Belt Size: B-52
  • Weight of Machine (Approx.): 165 kg
  • Type: Regular Duty (Round)

This machine is robust and versatile, ideal for various drilling and tapping tasks, with a focus on precision and adjustable speed settings to accommodate different materials and applications.

Request
Callback


Additional Information:

  • Delivery Time: NEXT DAY DISPETCH
Yes! I am Interested

RTD-40 (RTD-17) 25Mm Regular Duty (Round) Drilling Cum Tapping Machines (Panel Type)

RTD-40 (RTD-17) 25Mm Regular Duty (Round) Drilling Cum Tapping Machines (Panel Type)
  • RTD-40 (RTD-17) 25Mm Regular Duty (Round) Drilling Cum Tapping Machines (Panel Type)
  • RTD-40 (RTD-17) 25Mm Regular Duty (Round) Drilling Cum Tapping Machines (Panel Type)
  • RTD-40 (RTD-17) 25Mm Regular Duty (Round) Drilling Cum Tapping Machines (Panel Type)
  • RTD-40 (RTD-17) 25Mm Regular Duty (Round) Drilling Cum Tapping Machines (Panel Type)
Get Best Quote
Approx. Price: Rs 39,000 / PieceGet Latest Price
Product Brochure

Product Details:

Hole Diameter20 mm
MaterialMild Steel
Drilling Capacity In Steel25
FunctionsDrilling, Tapping
Automation GradeSemi Automatic
LayoutVertical

Drilling Cum Tapping Machines (Panel Type)

Model: RTD – 40 (Similar to RTD-17)
Type: Regular Duty

Specifications:
  • Drilling Capacity: 25 mm
  • Spindle Speed: Eight speed options
  • Speed Range: 87 to 3600 RPM
  • Spindle Nose: MT-3
  • Spindle Center to Column: 250 mm
  • Spindle Travel: 150 mm
  • Max Distance Spindle to Table: 930 mm
  • Max Distance Spindle to Base: 1200 mm
  • Working Surface of Base: 360 x 400 mm
  • Working Surface of Table: 395 mm (Round)
  • Column Diameter: 74 mm
  • Machine Base Dimensions: 550 x 380 mm
  • Motor: 1.5 HP / 1440 RPM
  • V-Belt Size: B-52
  • Weight of Machine (Approx.): 165 kg
Request
Callback
Yes! I am Interested

RTD-41 (RTD-18) 25mm (Round) Drilling Cum Tapping Machines With Automatic PLC Reverse Panel

RTD-41 (RTD-18) 25mm (Round) Drilling Cum Tapping Machines With Automatic PLC Reverse Panel
  • RTD-41 (RTD-18) 25mm (Round) Drilling Cum Tapping Machines With Automatic PLC Reverse Panel
  • RTD-41 (RTD-18) 25mm (Round) Drilling Cum Tapping Machines With Automatic PLC Reverse Panel
  • RTD-41 (RTD-18) 25mm (Round) Drilling Cum Tapping Machines With Automatic PLC Reverse Panel
  • RTD-41 (RTD-18) 25mm (Round) Drilling Cum Tapping Machines With Automatic PLC Reverse Panel
Get Best Quote
Approx. Price: Rs 39,000 / PieceGet Latest Price
Product Brochure

Product Details:

Hole Diameter20 mm
MaterialMild Steel
Drilling Capacity In Steel25
FunctionsTapping, Drilling
Automation GradeSemi Automatic
LayoutVertical
Country of OriginMade in India

Drilling Cum Tapping Machine (Panel Type)

Model: RTD-41 (Similar to RTD-18)

Specifications:
  • Drilling Capacity: 25 mm
  • Spindle Speed: 8 speeds
  • Speed Range: 87 to 3600 RPM
  • Spindle Nose: MT-3
  • Spindle Center to Column: 250 mm
  • Spindle Travel: 150 mm
  • Max Distance Spindle to Table: 930 mm
  • Max Distance Spindle to Base: 1200 mm
  • Working Surface of Base: 360 x 400 mm
  • Working Surface of Table: 320 x 320 mm
  • Column Diameter: 74 mm
  • Machine Base: 550 x 380 mm
  • Motor: 1.5 HP / 1440 RPM
  • V-Belt Size: B-52
  • Weight of Machine (Approx.): 170 kg
  • Duty Type: Regular Duty (Square)
Request
Callback
Yes! I am Interested

RTD-41 (RTD-18) Regular Duty (Square) Drilling Cum Tapping Machines (Pannal Type)

RTD-41 (RTD-18) Regular Duty (Square) Drilling Cum Tapping Machines (Pannal Type)
  • RTD-41 (RTD-18) Regular Duty (Square) Drilling Cum Tapping Machines (Pannal Type)
  • RTD-41 (RTD-18) Regular Duty (Square) Drilling Cum Tapping Machines (Pannal Type)
  • RTD-41 (RTD-18) Regular Duty (Square) Drilling Cum Tapping Machines (Pannal Type)
  • RTD-41 (RTD-18) Regular Duty (Square) Drilling Cum Tapping Machines (Pannal Type)
  • RTD-41 (RTD-18) Regular Duty (Square) Drilling Cum Tapping Machines (Pannal Type)
  • RTD-41 (RTD-18) Regular Duty (Square) Drilling Cum Tapping Machines (Pannal Type)
  • RTD-41 (RTD-18) Regular Duty (Square) Drilling Cum Tapping Machines (Pannal Type)
Get Best Quote
Approx. Price: Rs 39,000 / PieceGet Latest Price
Product Brochure

Product Details:

Hole Diameter20 mm
MaterialMild Steel
Drilling Capacity In Steel25
FunctionsDrilling, Tapping
Automation GradeSemi Automatic
LayoutVertical
Country of OriginMade in India

RTD-40 Machine Specifications
  • Drilling Capacity: 25 mm
  • Spindle Speed: Eight speeds
  • Speed Range: 87 to 3600 RPM
  • Spindle Nose: MT-3 (Morse Taper No. 3)
  • Spindle Center to Column: 250 mm
  • Spindle Travel: 150 mm
  • Maximum Distance Spindle to Table: 930 mm
  • Maximum Distance Spindle to Base: 1200 mm
  • Working Surface of Base: 360 x 400 mm
  • Working Surface of Table: 395 mm diameter (round)
  • Column Diameter: 74 mm
  • Machine Base Dimensions: 550 x 380 mm
  • Motor Power/RPM: 1.5 HP / 1440 RPM
  • V-Belt Size: B-52
  • Weight of Machine (Approx.): 165 kg
  • Type: Regular Duty (Round)
Request
Callback
Yes! I am Interested

RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (Pannel Type)

RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (Pannel Type)
  • RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (Pannel Type)
  • RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (Pannel Type)
  • RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (Pannel Type)
  • RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (Pannel Type)
Get Best Quote
Approx. Price: Rs 44,300 / PieceGet Latest Price
Product Brochure

Product Details:

Hole Diameter40 mm
MaterialMild Steel
Drilling Capacity In Steel40
FunctionsDrilling, Tapping
Automation GradeSemi Automatic
LayoutVertical
Country of OriginMade in India

Drilling Cum Tapping Machine (Panel Type)

Model: RTD-42 (Similar to RTD-22)

Specifications:
  • Drilling Capacity: 40 mm
  • Spindle Speed: Eight speeds
  • Speed Range: 120 to 2800 RPM
  • Spindle Nose: MT-4
  • Spindle Centre to Column: 250 mm
  • Spindle Travel: 155 mm
  • Max Distance Spindle to Table: 830 mm
  • Max Distance Spindle to Base: 1050 mm
  • Working Surface of Base: 360 x 400 mm
  • Working Surface of Table: 330 x 330 mm
  • Column Diameter: 87 mm
  • Machine Base Dimensions: 560 x 400 mm
  • Motor: 1.5 HP, 1440 RPM
  • V-Belt Size: B-52
  • Weight of Machine (Approx.): 210 kg
  • Type: Heavy Duty (Square)
Request
Callback
Yes! I am Interested

RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (panel Type)

RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (panel Type)
  • RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (panel Type)
  • RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (panel Type)
  • RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (panel Type)
  • RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (panel Type)
  • RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (panel Type)
  • RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (panel Type)
  • RTD-42 (RTD-22) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines (panel Type)
Get Best Quote
Approx. Price: Rs 44,300 / PieceGet Latest Price
Product Brochure

Product Details:

MaterialMild Steel
Drilling Capacity In Steel40
FunctionsTapping, Drilling
Automation GradeSemi Automatic
Country of OriginMade in India
Hole Diameter20 mm

Model: RTD-42 (similar to RTD-22)

Drilling Capacity: 40 mm

Spindle Speed: Eight-speed range

  • Speed Range: 120 to 2800 RPM

Spindle Nose: MT-4

Spindle Center to Column: 250 mm

Spindle Travel: 155 mm

Maximum Distance Spindle to Table: 830 mm

Maximum Distance Spindle to Base: 1050 mm

Working Surface of Base: 360 x 400 mm

Working Surface of Table: 330 x 330 mm

Column Diameter: 87 mm

Machine Base: 560 x 400 mm

Motor: 1.5 HP / 1440 RPM

V-Belt Size: B-52

Weight of Machine: Approximately 210 kg

Type: Heavy Duty (Square)

Request
Callback
Yes! I am Interested

RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center

RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center
  • RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center
  • RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center
  • RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center
  • RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center
  • RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center
  • RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center
  • RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center
  • RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center
  • RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center
  • RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center
  • RTD-42H (RTD-22H) 40mm Heavy Duty (Square) Drilling Cum Tapping Machines With 10 Inch Center
Get Best Quote
Approx. Price: Rs 48,200 / PieceGet Latest Price
Product Brochure

Product Details:

Hole Diameter40 mm
Number Of Shaft3
MaterialMild Steel
Drilling Capacity In Steel40
FunctionsTapping
Country of OriginMade in India

Drilling Cum Tapping Machine (Panel Type)

Model: RTD-42H (Similar to RTD-22H)
Type: Heavy Duty (Square)

Specifications:
  • Drilling Capacity: 40 mm
  • Spindle Speed: 8 speeds
  • Speed Range: 120 to 2800 RPM
  • Spindle Nose: MT-4
  • Spindle Center to Column: 250 mm
  • Spindle Travel: 250 mm
  • Max Distance Spindle to Table: 830 mm
  • Max Distance Spindle to Base: 1050 mm
  • Working Surface of Base: 360 x 400 mm
  • Working Surface of Table: 330 x 330 mm
  • Column Diameter: 87 mm
  • Machine Base Dimensions: 560 x 400 mm
  • Motor: 1.5 HP / 1440 RPM
  • V-Belt Size: B-52
  • Approximate Weight: 240 kg
Request
Callback
Yes! I am Interested

RTD-42H (RTD-22H) 40mm Capacity 10 Inch Center 10 Inch Stock Drilling Cum Tapping Machines

RTD-42H (RTD-22H) 40mm Capacity 10 Inch Center 10 Inch Stock Drilling Cum Tapping Machines
  • RTD-42H (RTD-22H) 40mm Capacity 10 Inch Center 10 Inch Stock Drilling Cum Tapping Machines
  • RTD-42H (RTD-22H) 40mm Capacity 10 Inch Center 10 Inch Stock Drilling Cum Tapping Machines
  • RTD-42H (RTD-22H) 40mm Capacity 10 Inch Center 10 Inch Stock Drilling Cum Tapping Machines
  • RTD-42H (RTD-22H) 40mm Capacity 10 Inch Center 10 Inch Stock Drilling Cum Tapping Machines
  • RTD-42H (RTD-22H) 40mm Capacity 10 Inch Center 10 Inch Stock Drilling Cum Tapping Machines
Get Best Quote
Approx. Price: Rs 48,200 / PieceGet Latest Price
Product Brochure

Product Details:

Hole Diameter40 mm
Number Of Shaft3
MaterialMild Steel
Working Stroke(mm)100
Country of OriginMade in India

  • Model: RTD-42H (similar to RTD-22H)
  • Drilling Capacity: 40 mm
  • Spindle Speed: Eight-speed settings
  • Speed Range: 120 to 2800 RPM
  • Spindle Nose: MT-4 (Morse Taper 4)
  • Spindle Centre to Column: 250 mm
  • Spindle Travel: 250 mm
  • Maximum Distance Spindle to Table: 830 mm
  • Maximum Distance Spindle to Base: 1050 mm
  • Working Surface of Base: 360 x 400 mm
  • Working Surface of Table: 330 x 330 mm
  • Column Diameter: 87 mm
  • Machine Base: 560 x 400 mm
  • Motor: 1.5 HP / 1440 RPM
  • V-Belt Size: B-52
  • Weight: Approx. 240 kg
  • Type: Heavy Duty (Square)
    • Request
    Callback


    Additional Information:

    • Packaging Details: 1LOOSE
    Yes! I am Interested

    RTD-43 (RTD-23A) 40mm Heavy Duty Drilling Cum Tapping Machines (Panel Type)

    RTD-43 (RTD-23A) 40mm Heavy Duty Drilling Cum Tapping Machines (Panel Type)
    • RTD-43 (RTD-23A) 40mm Heavy Duty Drilling Cum Tapping Machines (Panel Type)
    • RTD-43 (RTD-23A) 40mm Heavy Duty Drilling Cum Tapping Machines (Panel Type)
    • RTD-43 (RTD-23A) 40mm Heavy Duty Drilling Cum Tapping Machines (Panel Type)
    • RTD-43 (RTD-23A) 40mm Heavy Duty Drilling Cum Tapping Machines (Panel Type)
    Get Best Quote
    Approx. Price: Rs 61,500 / PieceGet Latest Price
    Product Brochure

    Product Details:

    Hole Diameter40 mm
    MaterialMild Steel
    Drilling Capacity In Steel40
    FunctionsTapping, Drilling
    Automation GradeSemi Automatic
    LayoutVertical
    Country of OriginMade in India

    Drilling Cum Tapping Machine (Panel Type)

    Model: RTD-43H (Similar to RTD-23B)

    Specifications:
    • Drilling Capacity: 40 mm
    • Spindle Speed: Eight speeds
    • Speed Range: 87 to 1850 RPM
    • Spindle Nose: MT-4
    • Spindle Center to Column: 300 mm
    • Spindle Travel: 300 mm
    • Max Distance Spindle to Table: 830 mm
    • Max Distance Spindle to Base: 1050 mm
    • Working Surface of Base: 360 x 400 mm
    • Working Surface of Table: 395 mm (Round)
    • Column Diameter: 87 mm
    • Machine Base Dimensions: 560 x 400 mm
    • Motor: 1.5 HP / 1440 RPM
    • V-Belt Size: B-52
    • Weight of Machine: Approx. 280 kg
    • Type: Heavy Duty (Round)
    Request
    Callback
    Yes! I am Interested

    RTD-44 (RTD-23H) 40mm Heavy Drilling Cum Tapping Machines With 12 inch 300mm Spindle Travel

    RTD-44 (RTD-23H) 40mm Heavy Drilling Cum Tapping Machines With 12 inch 300mm Spindle Travel
    • RTD-44 (RTD-23H) 40mm Heavy Drilling Cum Tapping Machines With 12 inch 300mm Spindle Travel
    • RTD-44 (RTD-23H) 40mm Heavy Drilling Cum Tapping Machines With 12 inch 300mm Spindle Travel
    • RTD-44 (RTD-23H) 40mm Heavy Drilling Cum Tapping Machines With 12 inch 300mm Spindle Travel
    • RTD-44 (RTD-23H) 40mm Heavy Drilling Cum Tapping Machines With 12 inch 300mm Spindle Travel
    Get Best Quote
    Approx. Price: Rs 67,500 / PieceGet Latest Price
    Product Brochure

    Product Details:

    Hole Diameter40 mm
    MaterialMild Steel
    Working Stroke(mm)100
    Drilling Capacity In Steel40
    FunctionsTapping, Drilling
    Automation GradeSemi Automatic
    LayoutVertical
    Country of OriginMade in India

    Drilling Cum Tapping Machine (Panel Type)Model: RTD-44 (Similar to RTD-23 H)

    Specifications:

    • Drilling Capacity: 40 mm
    • Spindle Speed: 8-speed (Range: 87 to 1850 RPM)
    • Spindle Nose: MT-4
    • Spindle Centre to Column: 375 mm
    • Spindle Travel: 310 mm
    • Max Distance Spindle to Table: 850 mm
    • Max Distance Spindle to Base: 1050 mm
    • Working Surface of Base: 420 x 420 mm
    • Working Surface of Table: 495 mm (Round)
    • Column Diameter: 100 mm
    • Machine Base Dimensions: 645 x 420 mm
    • Motor: 1.5 HP / 1440 RPM
    • V-Belt Size: B-65
    • Weight of Machine: Approx. 350 kg
    Request
    Callback
    Yes! I am Interested

    RTD-44 (RTD-23H) Extra Heavy 12" Spindle Travel Drilling Cum Tapping Machines (Automatic Panel Type)

    RTD-44 (RTD-23H) Extra Heavy 12 Spindle Travel Drilling Cum Tapping Machines (Automatic Panel Type)
    • RTD-44 (RTD-23H) Extra Heavy 12 Spindle Travel Drilling Cum Tapping Machines (Automatic Panel Type)
    • RTD-44 (RTD-23H) Extra Heavy 12 Spindle Travel Drilling Cum Tapping Machines (Automatic Panel Type)
    • RTD-44 (RTD-23H) Extra Heavy 12 Spindle Travel Drilling Cum Tapping Machines (Automatic Panel Type)
    • RTD-44 (RTD-23H) Extra Heavy 12 Spindle Travel Drilling Cum Tapping Machines (Automatic Panel Type)
    • RTD-44 (RTD-23H) Extra Heavy 12 Spindle Travel Drilling Cum Tapping Machines (Automatic Panel Type)
    Get Best Quote
    Approx. Price: Rs 67,500 / PieceGet Latest Price
    Product Brochure

    Product Details:

    Hole Diameter40
    MaterialMild Steel
    Drilling Capacity In Steel40
    FunctionsDrilling, Tapping
    Automation GradeSemi Automatic
    LayoutVertical
    Country of OriginMade in India

    Machine Specifications
    • Model: RTD-44 (similar to RTD-23 H)
    • Drilling Capacity: 40 mm
    • Spindle Speed: 8 speeds
    • Speed Range: 87 to 1850 RPM
    • Spindle Nose: MT-4 (Morse Taper 4)
    • Spindle Centre to Column: 375 mm
    • Spindle Travel: 310 mm
    • Max Distance Spindle to Table: 850 mm
    • Max Distance Spindle to Base: 1050 mm
    • Working Surface of Base: 420 x 420 mm
    • Working Surface of Table: 495 mm (round)
    • Column Diameter: 100 mm
    • Machine Base Dimensions: 645 x 420 mm
    • Motor: 1.5 HP, 1440 RPM
    • V-Belt Size: B-65
    • Weight: Approx. 350 kg
    • Type: Extra Heavy Duty (Round)
    Request
    Callback
    Yes! I am Interested

    RTD-45 (RTD-23C) (Square) Drilling Cum Tapping Machines (Panel Type)

    RTD-45 (RTD-23C) (Square) Drilling Cum Tapping Machines (Panel Type)
    • RTD-45 (RTD-23C) (Square) Drilling Cum Tapping Machines (Panel Type)
    • RTD-45 (RTD-23C) (Square) Drilling Cum Tapping Machines (Panel Type)
    • RTD-45 (RTD-23C) (Square) Drilling Cum Tapping Machines (Panel Type)
    • RTD-45 (RTD-23C) (Square) Drilling Cum Tapping Machines (Panel Type)
    Get Best Quote
    Approx. Price: Rs 51,000 / PieceGet Latest Price
    Product Brochure

    Product Details:

    Drilling Capacity25 mm
    Type of Drilling MachinePillar
    Country of OriginMade in India
    SPINDLE NOSEMT-4
    SPINDLE CENTRE TO COLUMN350 MM
    SPINDLE TRAVEL155 MM

    Drilling Cum Tapping Machine Specifications

    Model: RTD-45 (similar to RTD-23 C)

    • Drilling Capacity: 40 mm
    • Spindle Speed: Eight speeds
    • Speed Range: 120 to 2800 RPM
    • Spindle Nose: MT-4 (Morse Taper 4)
    • Spindle Centre to Column: 350 mm
    • Spindle Travel: 155 mm
    • Maximum Distance Spindle to Table: 830 mm
    • Maximum Distance Spindle to Base: 1050 mm
    • Working Surface of Base: 420 x 420 mm
    • Working Surface of Table: 330 x 330 mm
    • Column Diameter: 87 mm
    • Machine Base Dimensions: 645 x 420 mm
    • Motor: 1.5 HP / 1440 RPM
    • V-Belt Size: B-60
    • Weight of Machine (Approx.): 230 kg
    • Fine Feed Mechanism: Yes (Square RTD-45 model)
    Request
    Callback
    Yes! I am Interested

    RTD-46 (RTD-23D) 40mm Capacity Drilling Cum Tapping Machines (Automatic Reverse panel Type)

    RTD-46 (RTD-23D) 40mm Capacity Drilling Cum Tapping Machines (Automatic Reverse panel Type)
    • RTD-46 (RTD-23D) 40mm Capacity Drilling Cum Tapping Machines (Automatic Reverse panel Type)
    • RTD-46 (RTD-23D) 40mm Capacity Drilling Cum Tapping Machines (Automatic Reverse panel Type)
    • RTD-46 (RTD-23D) 40mm Capacity Drilling Cum Tapping Machines (Automatic Reverse panel Type)
    • RTD-46 (RTD-23D) 40mm Capacity Drilling Cum Tapping Machines (Automatic Reverse panel Type)
    • RTD-46 (RTD-23D) 40mm Capacity Drilling Cum Tapping Machines (Automatic Reverse panel Type)
    • RTD-46 (RTD-23D) 40mm Capacity Drilling Cum Tapping Machines (Automatic Reverse panel Type)
    Get Best Quote
    Approx. Price: Rs 54,000 / PieceGet Latest Price
    Product Brochure

    Product Details:

    Drilling Capacity25 mm
    Type of Drilling MachinePillar
    Country of OriginMade in India
    SPINDLE CENTRE TO COLUMN350 MM
    SPINDLE NOSEMT-4
    SPINDLE TRAVEL250 MM

    Here’s a concise overview of the Drilling Cum Tapping Machine (Panel Type) Model RTD-46:

    Specifications
    • Model: RTD-46 (Similar to RTD-23 D)
    • Drilling Capacity: 40 mm
    • Spindle Speed: 8 speeds (87 to 1850 RPM)
    • Spindle Nose: MT-4
    • Spindle Centre to Column: 350 mm
    • Spindle Travel: 250 mm
    • Max Distance Spindle to Table: 830 mm
    • Max Distance Spindle to Base: 1050 mm
    • Working Surface of Base: 420 x 420 mm
    • Working Surface of Table: 395 mm (Round)
    • Column Diameter: 87 mm
    • Machine Base Dimensions: 645 x 420 mm
    • Motor: 1.5 HP / 1440 RPM
    • V-Belt Size: B-60
    • Weight of Machine: Approximately 260 kg
    • Features: Fine feed mechanism (Round)
    Request
    Callback
    Yes! I am Interested

    RTD-46 (RTD-23D) Drilling Cum Tapping Machines With 14" Center (Panel Type)

    RTD-46 (RTD-23D) Drilling Cum Tapping Machines With 14 Center (Panel Type)
    • RTD-46 (RTD-23D) Drilling Cum Tapping Machines With 14 Center (Panel Type)
    • RTD-46 (RTD-23D) Drilling Cum Tapping Machines With 14 Center (Panel Type)
    • RTD-46 (RTD-23D) Drilling Cum Tapping Machines With 14 Center (Panel Type)
    • RTD-46 (RTD-23D) Drilling Cum Tapping Machines With 14 Center (Panel Type)
    • RTD-46 (RTD-23D) Drilling Cum Tapping Machines With 14 Center (Panel Type)
    Get Best Quote
    Approx. Price: Rs 54,000 / PieceGet Latest Price
    Product Brochure

    Product Details:

    Hole Diameter40 mm
    Drilling Capacity25 mm
    Type of Drilling MachinePillar
    Country of OriginMade in India
    SPINDLE NOSEMT-4
    SPINDLE CENTRE TO COLUMN350 MM
    SPINDLE TRAVEL250 MM

    Machine Specifications
    • Model: RTD-46 (Similar to RTD-23 D)
    • Drilling Capacity: 40 mm
    • Spindle Speed: Eight speeds
    • Speed Range: 87 to 1850 RPM
    • Spindle Nose: MT-4 (Morse Taper 4)
    • Spindle Center to Column: 350 mm
    • Spindle Travel: 250 mm
    • Maximum Distance Spindle to Table: 830 mm
    • Maximum Distance Spindle to Base: 1050 mm
    • Working Surface of Base: 420 x 420 mm
    • Working Surface of Table: 395 mm (Round)
    • Column Diameter: 87 mm
    • Machine Base: 645 x 420 mm
    • Motor: 1.5 HP, 1440 RPM
    • V-Belt Size: B-60
    • Weight of Machine (Approx.): 260 kg
    • Features: Fine feed mechanism
    Request
    Callback
    Yes! I am Interested
    X

    Product Videos

    Watch More Videos

    Explore More Products

    Ramato 3 HP 3 PH 1440 RPM 14 X 2 WHEELS FOUR BEARING EXTRA HEAVY DUTY PEDESTAL GRINDER
    Ramato 3 HP 3 PH 1440 RPM 14 X 2 WHEELS FOUR BEARING EXTRA HEAVY DUTY PEDESTAL GRINDER
    Get Best Quote
    Pipe Cutting Machine
    Pipe Cutting Machine
    Get Best Quote
    Ramato Pedestal Grinder
    Ramato Pedestal Grinder
    Get Best Quote
    Mig 250 F Mig/arc Inverter Welding Machine 3 Phase Mosfet
    Mig 250 F Mig/arc Inverter Welding Machine 3 Phase Mosfet
    Get Best Quote
    TIG 250 A Argon Inverter Welding Machine
    TIG 250 A Argon Inverter Welding Machine
    Get Best Quote
    3 Roller Motorised Pipe Bending Machine
    3 Roller Motorised Pipe Bending Machine
    Get Best Quote
    View All Products
    Tell Us What Are You Looking For ?


    Reach Us
    Rajlaxmi Tools (Founder)
    Rajlaxmi Machine Tools
    Plot No.11, Survey No. 212, Rajlaxmi Estate, Atlas Industrial Area, Near Maldhari Railway Crossing
    Rajkot - 360004, Gujarat, India
    Get Directions

    Corporate Video
    Call Us

    Share Us

    Facebook Twitter LinkedIn


    Send E-mail
