Centrifugal Blower

Product Details:

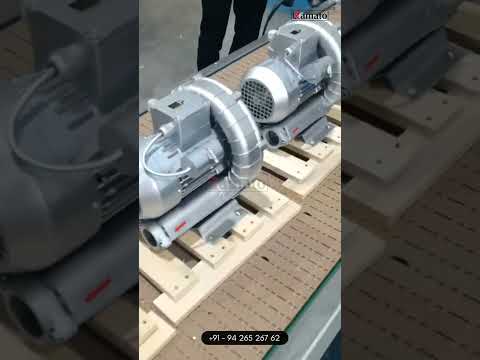

Here is the RAMATO Brand 1.2 HP Three Phase Single Stage Ring/Turbo Industrial Air Blower specification without the price:

Product Overview: The Ramato 1.2 HP Three Phase Single Stage Ring/Turbo Industrial Air Blower is designed for industrial environments that require moderate airflow and pressure. This blower is equipped with a three-phase motor for efficiency and continuous operation, making it suitable for a wide range of industrial applications including ventilation, dust extraction, and pneumatic conveying.

• Single-Stage Design: This blower is configured for a single-stage operation, providing efficient air movement and moderate pressure, making it ideal for a variety of industrial applications where moderate air volume and pressure are required.

• High Airflow Efficiency: With a max airflow range of 165-180 m³/hr, this blower delivers sufficient airflow for processes that require consistent air movement, including cooling, ventilation, and pneumatic conveying.

• Three-Phase Motor: The blower uses a 346-415 V three-phase motor, ensuring high efficiency and long-term durability, ideal for continuous operation in industrial settings.

• Durable Construction: The blower is made from high-quality materials that are built to withstand industrial wear and tear, ensuring longevity and reliability in demanding environments.

• Low Noise Level: Operating at 63 dB, this blower produces moderate noise levels, making it a more comfortable option for environments where excessive noise could be an issue.

• Lightweight and Compact: Weighing only 15.0 kg, the blower is relatively lightweight and compact for its performance, making it easy to handle, install, and maintain.

• Energy Efficient: The 1.2 HP motor ensures the blower operates efficiently without unnecessary energy consumption, providing a balance between performance and cost-effectiveness.

Product Details:

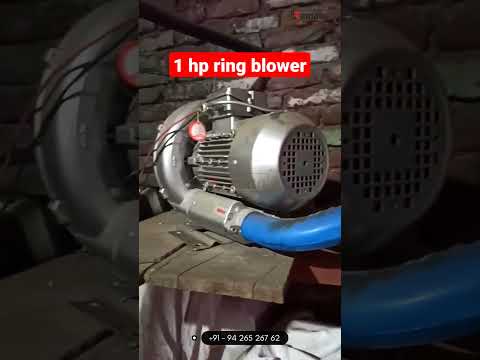

• Rated Output: 0.75 kW (1.0 HP)
• Voltage: 220-240 V
• Current: 5.5 A
• Max Volume: 140-160 m³/hr
• Noise Level: 114 dB
• Weight: 12 kg
• Outlet Diameter: 1.5 inches

• Type: Single Phase, Single Stage
• Use: Suitable for moderate to higher volume air requirements, used in light industrial and commercial applications such as air circulation, ventilation, and cooling systems.
• Design: Turbo/ Ring type blower, offering increased performance for environments needing higher airflows with relatively low power consumption.
• Efficiency: Provides reliable airflow with higher noise levels due to increased power output, ideal for situations where performance is prioritized over noise.

Product Details:

Product Overview: The Ramato 0.50 HP Three Phase Single Stage Ring/Turbo Industrial Air Blower is engineered for industrial applications that require moderate airflow and pressure. This blower, equipped with a three-phase motor, is ideal for continuous operation, making it a reliable choice for ventilation, pneumatic conveying, cooling, and dust extraction applications in various industries.

• Single-Stage Design: Provides moderate pressure and airflow, making it suitable for applications that do not require extremely high pressure but need a good flow of air.

• High Airflow Efficiency: With an airflow capacity of 110-130 m³/hr, the blower ensures consistent air movement, making it ideal for processes that demand continuous ventilation and air handling.

• Three-Phase Motor: Operating on a 346-415 V three-phase power supply, the blower delivers higher efficiency and reliability for long-term use, especially in industrial environments with consistent operational needs.

• Durable Construction: The blower is built with high-quality metal components, ensuring long-lasting performance in demanding conditions.

• Low Noise Level: Operating at 58 dB, the blower is relatively quiet compared to many industrial blowers, contributing to a safer and more comfortable working environment.

• Compact and Lightweight: Weighing just 11 kg, this blower is easy to install and maintain, offering a balance of performance and ease of use.

• Energy Efficient: The 0.50 HP motor offers an efficient balance of power and energy usage, providing consistent performance without excessive energy consumption.

• Pneumatic Conveying: Perfect for transporting materials through pneumatic systems that require moderate airflow and pressure.

• HVAC Systems: Suitable for ventilation and cooling systems in large industrial setups, ensuring proper airflow for temperature regulation.

• Dust Extraction: Ideal for dust collection systems that require a continuous flow of air to capture and remove airborne particles.

• Industrial Air Handling: Excellent for air handling tasks in industries such as manufacturing, food processing, and packaging, where reliable air movement is critical.

• Cooling Systems: Suitable for large-scale cooling systems in industrial settings, where consistent airflow is needed to prevent overheating of machinery or components.

Product Details:

Product Details:

Product Details:

Product Details:

Product Overview: The Ramato 0.25 HP Three Phase Single Stage Ring/Turbo Industrial Air Blower is designed for industrial applications that require moderate airflow and pressure. This compact blower operates on three-phase electrical power, making it highly efficient for continuous operation in various industrial processes, including pneumatic conveying, cooling, and ventilation systems.

• Single-Stage Design: The single-stage blower configuration is ideal for applications requiring moderate pressure and volume. It is efficient for general-purpose air handling tasks.

• Compact and Lightweight: With a weight of just 6.5 kg, the blower is easy to handle, install, and maintain, making it a great option for small to medium-sized industrial setups.

• Three-Phase Motor: Operates on a 346-415 V three-phase power supply, ensuring greater efficiency, durability, and the ability to run for long periods without overheating.

• High Airflow Efficiency: Provides 50-60 m³/hr of airflow, making it suitable for industrial processes that require continuous air movement at moderate pressures.

• Low Noise Level: Operating at 52 dB, the blower is relatively quiet for its size, reducing noise pollution in industrial environments.

• Durable Construction: Built with high-quality materials to ensure durability and reliability, even in harsh industrial environments.

• Pneumatic Conveying: Efficient for transporting materials through pipes or ducts, particularly in systems requiring moderate pressure and airflow.

• HVAC Systems: Ideal for industrial ventilation and cooling systems, helping to maintain air circulation and prevent overheating.

• Dust Extraction and Filtration: Suitable for use in dust extraction systems where consistent airflow is necessary for filtering air and removing contaminants.

• Industrial Air Handling: Perfect for a variety of industrial air handling tasks, including cooling, drying, and ventilation in manufacturing environments.

Product Details:

Product Details:

Product Details:

Product Details:

Product Details:

Product Details:

Here are the detailed specifications for the 1 HP MS Fabricated Suction Blowers available in both 1400 RPM and 2800 RPM versions:

Specifications:

• Rotor Diameter: 14" x 2.5"
• Suction/ Inlet Diameter: 4"
• Outlet Size: 6" x 6"
• Structure Thickness: 14 Gauge (2 mm)
• Motor Type:
  • Available with 1 Phase Electric Motor
  • Available with 3 Phase Electric Motor
• Pressure (C.F.M.): Moderate suction capacity for general industrial purposes.
• Price Range:
  • Only Blower: ₹12,800
  • Blower with 1 PH Electric Motor: ₹18,800
  • Blower with 3 PH Electric Motor: ₹18,400

Specifications:

• Rotor Diameter: 14" x 2.5"
• Suction/ Inlet Diameter: 4"
• Outlet Size: 6" x 6"
• Structure Thickness: 14 Gauge (2 mm)
• Motor Type:
  • Available with 1 Phase Electric Motor
  • Available with 3 Phase Electric Motor
• Pressure (C.F.M.): Higher suction capacity due to faster RPM.

• Material: The blowers are made with Mild Steel (MS), ensuring strength and durability for industrial use.
• Structure Thickness: The blower casing is made with 14 Gauge (2 mm) thick mild steel, which provides high mechanical strength and resistance to wear.
• Motor Compatibility: Available with 1 Phase or 3 Phase motors to suit different power supply configurations.
• RPM Options:
  • 1400 RPM: For standard suction and air intake needs.
  • 2800 RPM: For higher air flow and stronger suction requirements.

These 1 HP Suction Blowers are designed for applications that require efficient air suction. They are widely used in:

• Dust Collection Systems
• Air Ventilation Systems
• Cooling and Exhaust Systems for industrial machinery
• Industrial Workshops and Factories for improving airflow and ventilation

Product Details:

Product Details:

• Motor Power: 7.5 HP
• Rotor Diameter: 22 inches
• Pressure (C.F.M.): 980 CFM (Cubic Feet per Minute)
• Outlet Dimensions: 4" x 4" (Square)
• Structure Thickness: 12 Gauge (2.5 mm)
• Speed: 2800 RPM

• Only Blower: ₹31,900
• Blower with 1 PH Electric Motor: ₹47,400
• Blower with 3 PH Electric Motor: ₹53,400

• Material: MS (Mild Steel) Fabricated Construction
• Application: Suitable for industrial applications requiring high airflow and pressure, such as air ventilation, cooling, and dust extraction in larger systems.

If you need further information or assistance, feel free to ask!

Here are the specifications for the Ramato Brand 10 HP MS Fabricated Pressure Blower (2800 RPM):

• Motor Power: 10 HP
• Rotor Diameter: 24 inches
• Pressure (C.F.M.): 1350 CFM (Cubic Feet per Minute)
• Outlet Dimensions: 4" x 4" (Square)
• Structure Thickness: 12 Gauge (2.5 mm)
• Speed: 2800 RPM

• Material: MS (Mild Steel) Fabricated Construction
• Application: Ideal for large-scale industrial applications requiring significant airflow and pressure, including ventilation, cooling, and dust extraction in factories or large manufacturing environments.

Product Details:

• Model Type: MS Fabricated Pressure Blower | 2800 RPM
• Capacity: 0.5 HP
• Motor Type: 1-Phase Electric Motor
• Rotor Diameter: 12 inches
• Pressure (C.F.M.): 180
• Outlet (Square): 3" x 3"
• Thickness of Structure:
  • Material: Mild Steel (MS)
  • Gauge: 16 G - 1.5 mm

• RPM: 2800 RPM (high-speed operation for efficient air delivery)
• Design: Fabricated from Mild Steel (MS) for durability and long life
• Application: Suitable for industrial applications requiring high air pressure and volume
• Functionality: Ideal for pressure applications in ventilation, cooling, and exhaust systems
• Warranty: Typically covered by manufacturer warranty (specific details may vary)

Product Details:

• Motor Power: 15 HP
• Rotor Diameter: 26 inches
• Pressure (C.F.M.): 2000 CFM (Cubic Feet per Minute)
• Outlet Dimensions: Any (customizable based on requirement)
• Structure Thickness: 10 Gauge (3 mm)
• Speed: 2800 RPM

• Material: MS (Mild Steel) Fabricated Construction
• Application: Suitable for heavy-duty industrial applications requiring very high airflow and pressure, including large-scale ventilation, cooling, and dust extraction systems in factories, power plants, and large manufacturing setups.

Product Details:

Here are the detailed specifications for the 7.5 HP MS Fabricated Suction Blowers in both 1400 RPM and 2800 RPM versions, excluding prices.

Specifications:

• Rotor Diameter: 19" x 2.5"
• Suction/ Inlet Diameter: 6"
• Outlet Size: 8" x 8"
• Structure Thickness: 12 Gauge (2.5 mm)
• Motor Type:
  • Available with 1 Phase Electric Motor
  • Available with 3 Phase Electric Motor
• RPM: 1400 RPM
• Pressure (C.F.M.): Ideal for medium-to-large applications requiring steady airflow and moderate suction.

Specifications:

• Rotor Diameter: 19" x 2.5"
• Suction/ Inlet Diameter: 6"
• Outlet Size: 8" x 8"
• Structure Thickness: 12 Gauge (2.5 mm)
• Motor Type:
  • Available with 1 Phase Electric Motor
  • Available with 3 Phase Electric Motor
• RPM: 2800 RPM
• Pressure (C.F.M.): Increased airflow and suction capacity for heavy-duty industrial tasks requiring high performance.

• Material: Mild Steel (MS) fabrication offers high durability and resilience in challenging industrial environments.
• Structure Thickness: 12 Gauge (2.5 mm) thick mild steel ensures a robust blower housing that withstands continuous industrial use.
• Motor Compatibility:
  • 1 Phase Electric Motor: Ideal for locations with single-phase power supply.
  • 3 Phase Electric Motor: Provides higher efficiency and is suitable for larger industrial setups.
• RPM Options:
  • 1400 RPM: For steady, consistent airflow with moderate suction, designed for industrial operations requiring continuous and reliable performance.
  • 2800 RPM: Higher RPM offering increased suction and faster airflow, ideal for larger and more demanding applications.

These 7.5 HP MS Fabricated Suction Blowers are designed for various industrial uses:

• Dust Extraction Systems (in large factories, warehouses, or workshops)
• Ventilation and Exhaust Systems (for industrial spaces requiring efficient air movement)
• Industrial Cooling Systems (for machines, production lines, or large-scale equipment)
• Material Handling (used for conveying or vacuuming bulk materials like powders, granules, or dust)
• HVAC systems for factories and large buildings requiring high-efficiency air circulation
• Air Circulation Systems for controlling temperature and air quality in large spaces

• 1400 RPM model: Provides steady, low-to-moderate airflow suitable for industrial spaces where consistent and moderate suction is needed.
• 2800 RPM model: Higher airflow and suction power ideal for demanding applications like dust extraction, ventilation, and high-volume cooling systems.
• MS Fabrication provides strength and longevity in environments where continuous or heavy-duty usage is required.

• 7.5 HP Motor (Available in both 1 Phase and 3 Phase versions)
• 1400 RPM or 2800 RPM motor options

Product Details:

• Motor Power: 7.5 HP
• Rotor Diameter: 22 inches
• Pressure (C.F.M.): 980 CFM (Cubic Feet per Minute)
• Outlet Dimensions: 4" x 4" (Square)
• Structure Thickness: 12 Gauge (2.5 mm)
• Speed: 2800 RPM

• Material: MS (Mild Steel) Fabricated Construction
• Application: Suitable for industrial applications requiring high airflow and pressure, such as air ventilation, cooling, and dust extraction in larger systems.

Product Details:

• Motor Power: 1 HP (Horsepower)
• Rotor Diameter: 15 inches
• Pressure (C.F.M.): 250 CFM (Cubic Feet per Minute)
• Outlet Size: 3" x 3" (Square)
• Structure Thickness: 16 Gauge (1.5 mm)
• RPM: 2800 RPM (for high-speed operation)
• Material: MS (Mild Steel) fabricated for durability and strength

• High-Speed Performance: Operating at 2800 RPM, the blower provides a high pressure of 250 CFM, making it ideal for applications that require moderate airflow and high pressure.
• Durability: The MS fabricated construction with 16 gauge thickness (1.5 mm) ensures long-lasting performance even in industrial environments.
• Motor Options: Available with both 1-phase and 3-phase motors to cater to different electrical configurations.
• Compact & Efficient: While the 1 HP motor provides enough power for most applications, the blower is designed to be compact, making it a versatile solution for small to medium-scale systems.

• Industrial Use: Commonly used in ventilation systems, material handling, pneumatic conveying, dust collection, and other industrial processes that require high-pressure airflows.
• HVAC Systems: Suitable for heating, ventilation, and air conditioning systems where steady airflow is essential.

• Motor Voltage Options: It comes with either 1-phase or 3-phase electric motor configurations, depending on your specific power supply.
• Robust Design: Ideal for applications where the blower needs to handle varying loads or rough operating conditions, thanks to the strong MS material and 16-gauge construction.

Product Details:

Here are the detailed specifications for the 2 HP MS Fabricated Suction Blowers in both 1400 RPM and 2800 RPM versions, excluding prices.

Specifications:

• Rotor Diameter: 16" x 2.5"
• Suction/ Inlet Diameter: 4"
• Outlet Size: 6" x 6"
• Structure Thickness: 14 Gauge (2 mm)
• Motor Type:
  • Available with 1 Phase Electric Motor
  • Available with 3 Phase Electric Motor
• RPM: 1400 RPM
• Pressure (C.F.M.): Moderate suction capacity, suitable for applications that require consistent air flow and suction.

Specifications:

• Rotor Diameter: 16" x 2.5"
• Suction/ Inlet Diameter: 4"
• Outlet Size: 6" x 6"
• Structure Thickness: 14 Gauge (2 mm)
• Motor Type:
  • Available with 1 Phase Electric Motor
  • Available with 3 Phase Electric Motor
• RPM: 2800 RPM
• Pressure (C.F.M.): Higher suction capacity due to higher RPM, making it suitable for more demanding industrial applications requiring greater air flow.

• Material: The blower is fabricated from Mild Steel (MS), which offers strength, durability, and resistance to wear and corrosion.
• Structure Thickness: The blower casing is made with 14 Gauge (2 mm) mild steel, ensuring robust construction to withstand industrial environments.
• Motor Compatibility:
  • 1 Phase Electric Motor: Suitable for smaller industrial setups or locations with single-phase power.
  • 3 Phase Electric Motor: Designed for industrial operations where higher power and efficiency are required.
• RPM Options:
  • 1400 RPM: Suitable for consistent, moderate airflow and suction.
  • 2800 RPM: Provides higher suction and airflow for applications with higher demands.

These blowers are ideal for various industrial applications, such as:

• Dust Collection Systems
• Ventilation Systems (including exhaust and intake fans)
• Cooling and HVAC Systems for machinery and production lines
• Air Circulation in large spaces like factories, workshops, and warehouses
• Industrial Processing Units requiring efficient air suction for cooling or exhaust

Product Details:

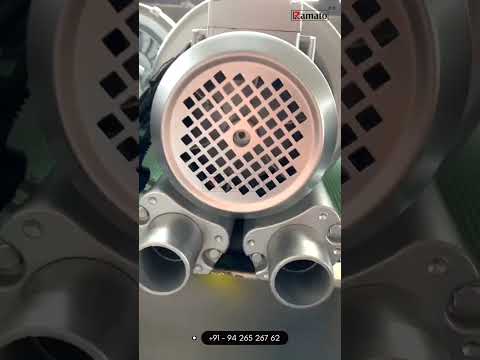

Product Overview: The Ramato 2.3 HP Three Phase Single Stage Ring/Turbo Industrial Air Blower is engineered to provide efficient and powerful airflow for a wide range of industrial applications. This blower uses a three-phase motor to ensure continuous operation with moderate to high airflow, making it ideal for tasks like ventilation, cooling, pneumatic conveying, and dust extraction in industrial settings.

• Single-Stage Design: The blower is configured with a single-stage design, providing optimal efficiency for moderate to high airflow requirements with reasonable pressure, ideal for a variety of industrial uses.

• High Airflow Capacity: With a maximum airflow of 210-220 m³/hr, this blower is capable of handling larger air volume needs in applications like pneumatic conveying, industrial ventilation, and dust extraction.

• Three-Phase Motor: The blower uses a 346-415 V three-phase motor, providing high power and operational reliability. The three-phase motor ensures smoother operation, higher efficiency, and longer service life compared to single-phase motors.

• Durable Construction: Built with high-quality materials, including a robust metal housing, the blower is designed to withstand continuous use in tough industrial environments, ensuring long-term performance.

• Low Noise Operation: Operating at 70 dB, this blower runs at a moderate noise level, which makes it suitable for environments where noise control is important, while still maintaining high performance.

• Efficient Cooling: The air-cooled design allows for efficient temperature regulation during operation, ensuring that the blower remains cool even in continuous use.

• Compact Design: Despite its powerful performance, the blower is relatively compact and weighs only 23.0 kg, which makes it easier to handle, install, and maintain.

• Energy Efficient: With a 2.3 HP motor, the blower operates efficiently to provide maximum output with reduced energy consumption.

Product Details:

• Rated Output: 0.18 kW (0.25 HP)
• Voltage: 220-240 V
• Current: 1.25 A
• Max Volume: 50-40 m³/hr
• Noise Level: 48 dB
• Weight: 6.5 kg
• Outlet Diameter: 1 inch

• Type: Single Phase, Single Stage
• Use: Suitable for applications requiring moderate airflow and pressure, such as ventilation or cooling systems.
• Design: Turbo/ Ring type, ideal for high-performance air delivery.
• Efficiency: Designed to offer reliable operation in industrial settings with low noise and energy consumption.

Product Details:

Product Details:

• Model Type: MS Fabricated Pressure Blower | 2800 RPM
• Capacity: 1 HP
• Motor Type: 1-Phase Electric Motor
• Rotor Diameter: 15 inches
• Pressure (C.F.M.): 250
• Outlet (Square): 3" x 3"
• Thickness of Structure:
  • Material: Mild Steel (MS)
  • Gauge: 16 G - 1.5 mm

• RPM: 2800 RPM (high-speed operation for efficient air delivery)
• Design: Fabricated from durable Mild Steel (MS) for strength and long service life
• Application: Ideal for industrial applications that require moderate air pressure and volume, such as ventilation, cooling, exhaust, and suction systems
• Efficiency: Designed to deliver high airflow with minimal energy consumption
• Versatility: Can be used in a wide range of industrial environments, including workshops, factories, and manufacturing plants
• Warranty: Typically covered by manufacturer warranty (specific details may vary)
